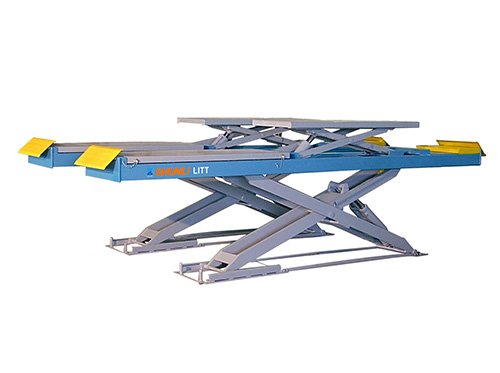

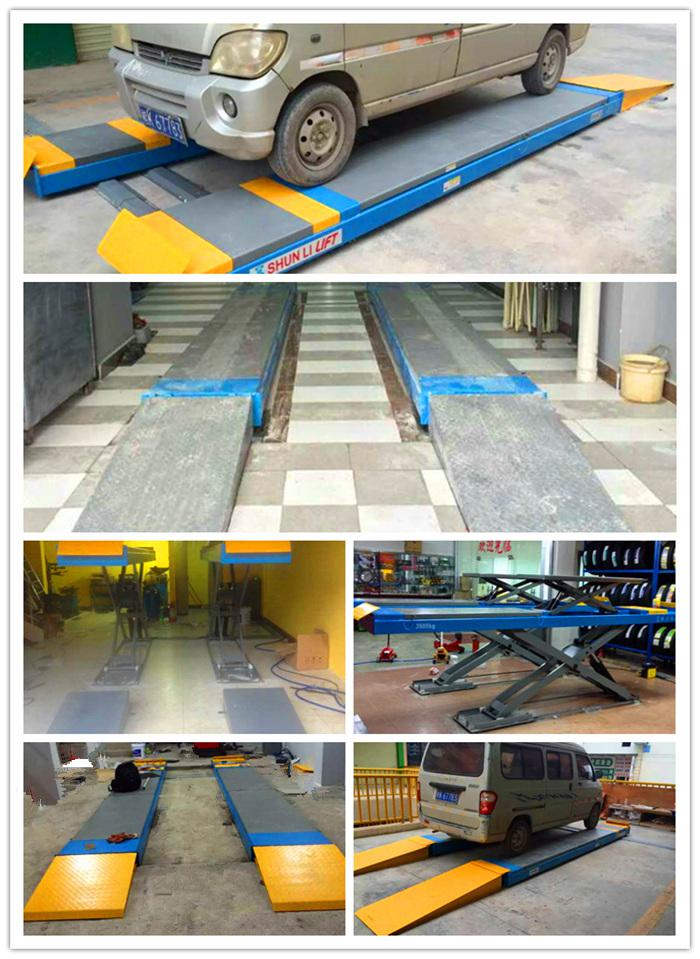

Double level scissor lift, 140mm above the ground at the lowest level
◆ Adopt Italy technology to design

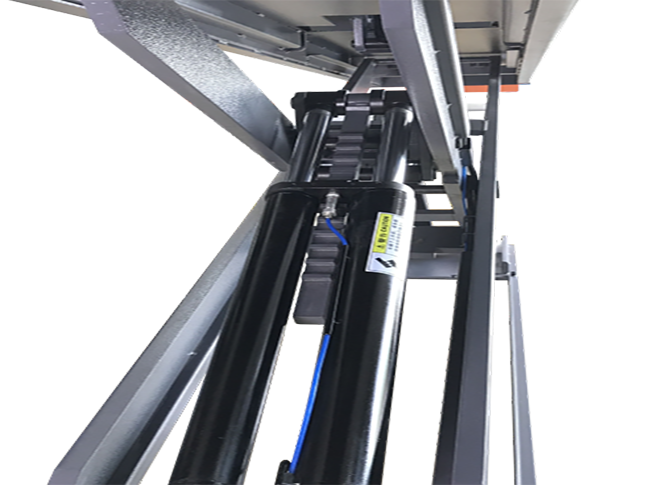

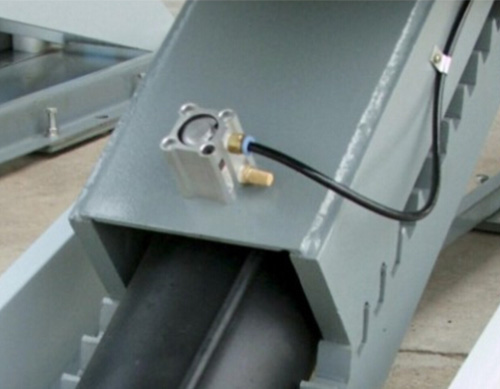

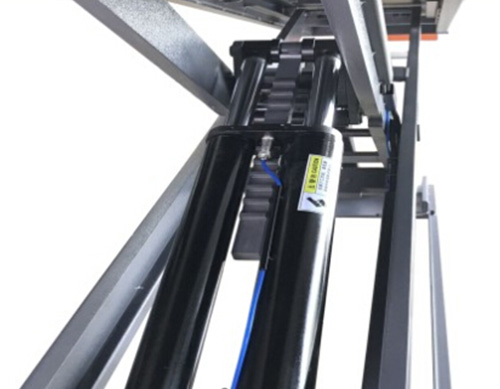

◆ 6cylinders, double hydraulic balance system(main lift)and mechanical safety with automatic unlock are equipped
◆ 24V safety control circuit
◆ 8 cylinders, double hydraulic balance system(main lift)and mechanical safety with automatic unlock are equipped
◆ Components are made by laser cutting machine or other CNC equipment
◆ Alloy solid steel X structure, good rust resistance and not easy to deformation
Product Features
Double level scissor lift, 140mm above the ground at the lowest level
· Adopt Italy technology to design
· 6cylinders, double hydraulic balance system(main lift)and mechanical safety with automatic unlock are equipped
· 24V safety control circuit
· Laser cutting whole-plate platforms, more accurate and stronger

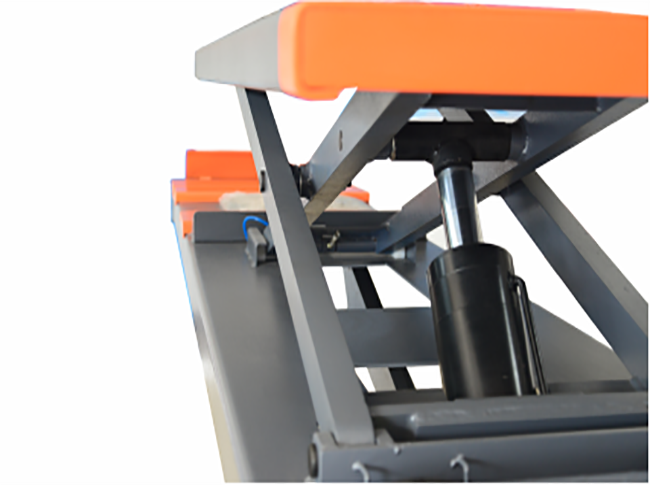

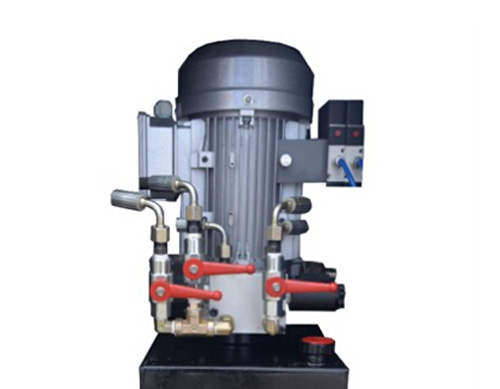

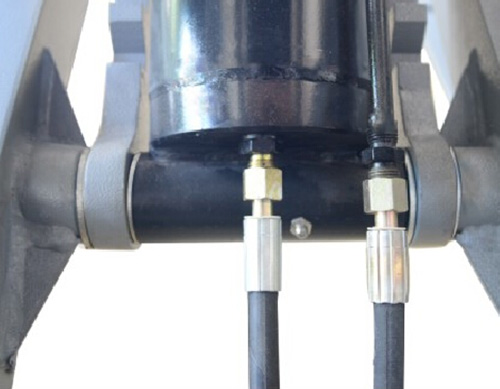

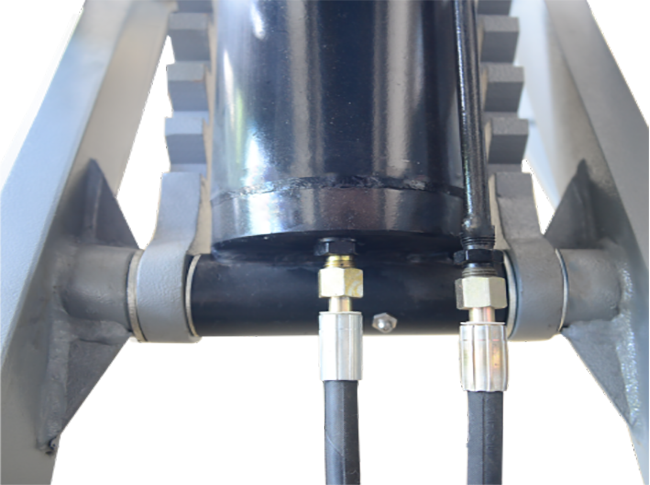

· Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity·Japanese oil sealing elements, Italian spherical valve, oil pipe explosion protective device, overload protection, international brand oil pipe
· Components are made by laser cutting machine or other CNC equipment.
· Alloy solid steel X structure, good rust resistance and not easy to deformation
· Shot blasting and high temperature baking powder coated surface finish

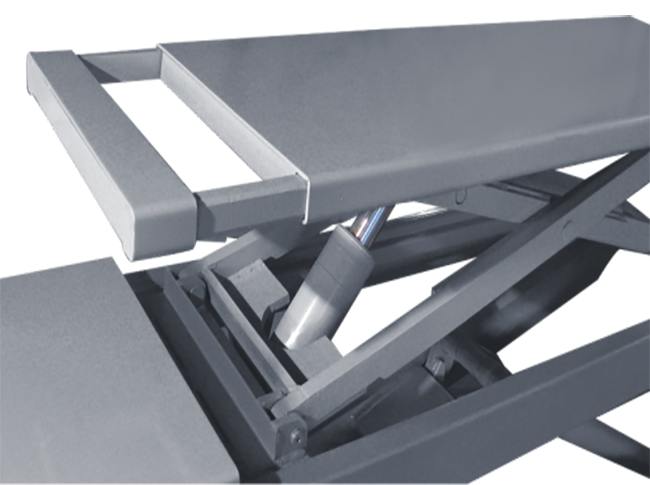

·Second-level extensible platform
· Wear-resisting bearings, polymer wear-resistance slider
· Infra-red electronic leveling sensor, anti presser foot device

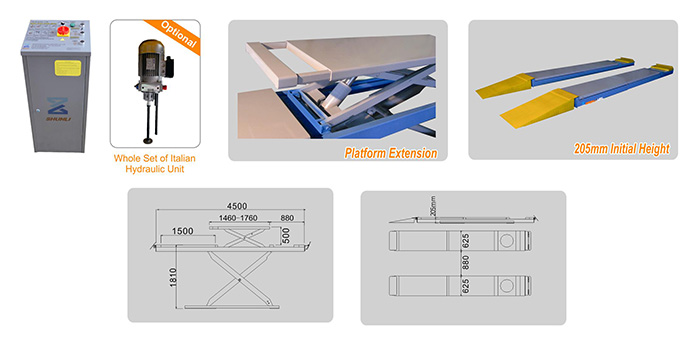

Model | CD3532TC | ||
FOB Guangzhou price | 3980.00USD | ||
Capacity of Main Lift | 3500kg | Main lift Platform Width | 625mm |
Capacity of Sub-lift | 3200KG | Sub-lift Platform Length | 1460-1760mm |
Main Lift Lifting Height | 1810mm | Sub-lift Platform Width | 565mm |
Sub-lift Lifting Height | 500mm | Motor | 380v/220v |
Main lift Platform Length | 4500mm | Air Pressure | 0.4-0.6mpa |
Initial Height | 205mm | Power | 3kw |
